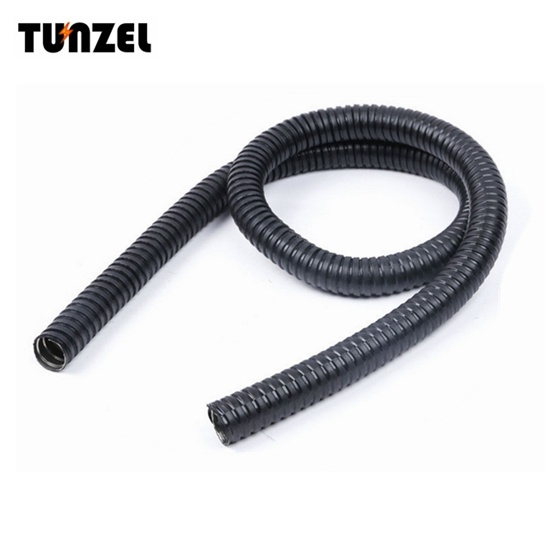

PVC COTAED FLEXIBLE CONDUIT
|
PVC COATED FLEXIBLE CONDUIT |
|||||
|
(Galvanized steel core ,pvc jacket) |
|||||
|
SIZE |
Inside Diameter(mm) |
Outside Diameter(mm) |
Coil Packing(m) |
||
|
Min |
Max |
Min |
Max |
||
|
3/8” |
12.30 |
12.80 |
16.70 |
17.20 |
30,50,100 |
|
1/2” |
15.80 |
16.30 |
20.20 |
20.70 |
30,50,100 |
|
3/4” |
20.70 |
21.20 |
25.50 |
26.10 |
30,50,100 |
|
1” |
26.20 |
26.80 |
31.60 |
32.20 |
30,50 |
|
1-1/4” |
34.80 |
35.40 |
40.80 |
41.50 |
15,25 |
|
1-1/2” |
40.10 |
40.60 |
46.60 |
47.20 |
15,25 |
|
2” |
51.30 |
51.90 |
58.10 |
58.70 |
15,25 |
|
2-1/2” |
60.00 |
63.60 |
71.80 |
72.40 |
15 |
|
3” |
78.00 |
78.80 |
87.20 |
87.90 |
10 |
|
4” |
101.60 |
102.60 |
112.20 |
112.30 |
10 |
a) Material: (inner layer)Adopting galvanized steel band with special insulation treatment.
(outer layer)Adopting PVC raw material(anti-UV, anti-aging) Color: Black or Grey.
b) Working temperature:-10 °c ~+80°c.
c) Long service life.
d) Good mechanical protection.
e) Good bending flexibility.
f) The flexible pipes have extremely good waterproof, insulating and pull resistance.
Detailed Images
